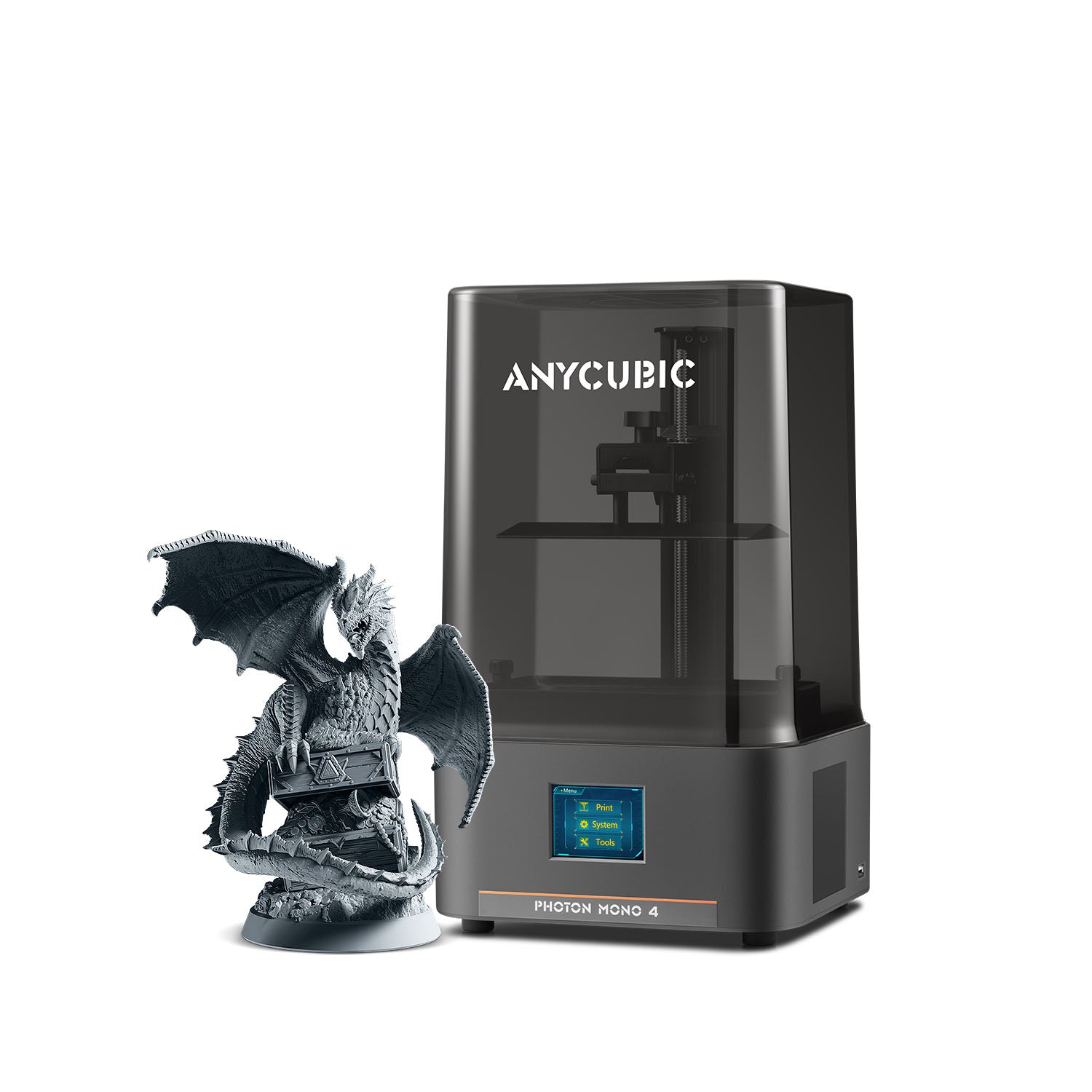

Anycubic Photon Mono 4

Regular price $319.00
Sale price $319.00 Regular price $351.00
Save $32.00
Code:BTS60, Auto-applied extra $60 off
--: --: --: --
Code: BTS60
Copy

Product Features

● 10K Resolution at Entry-Level
● 7" High-Definition Screen
● Printing Speed up to 70mm/h

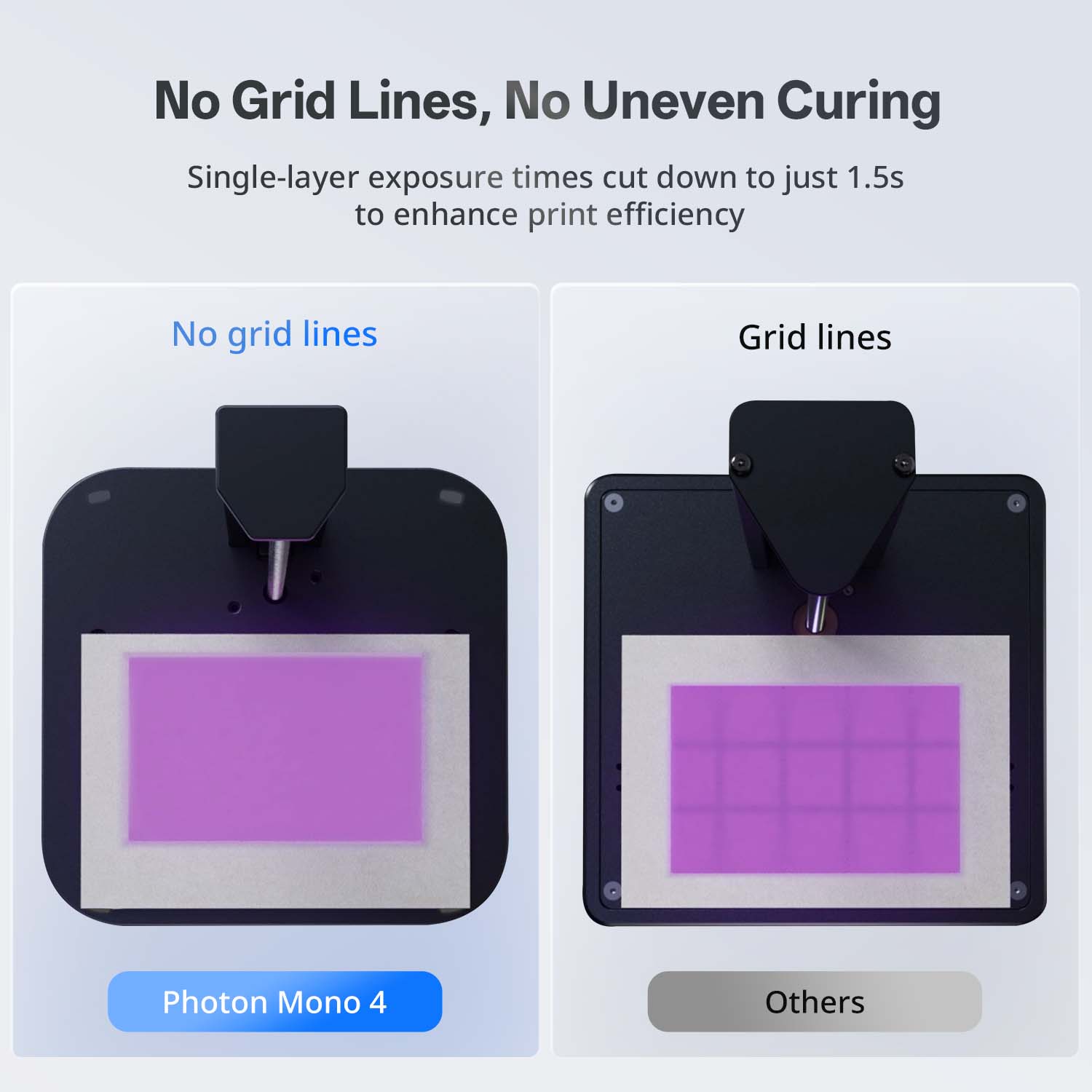

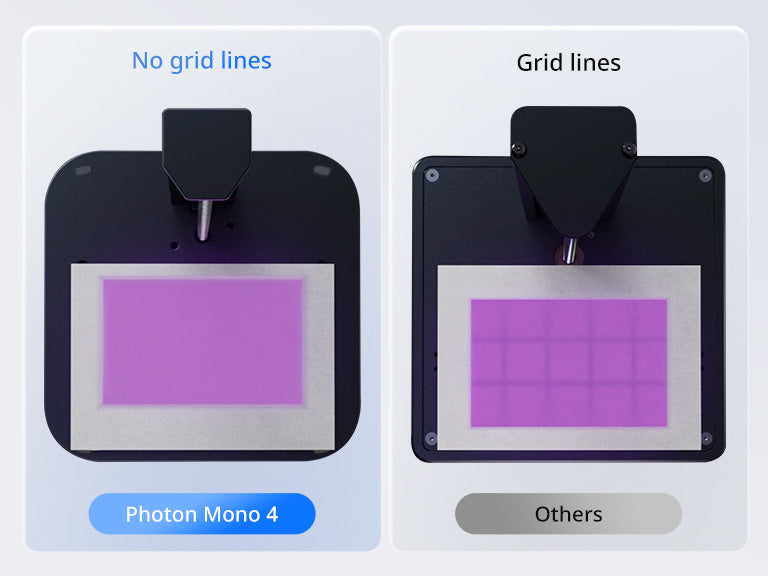

● LighTurbo Light Sourcing System

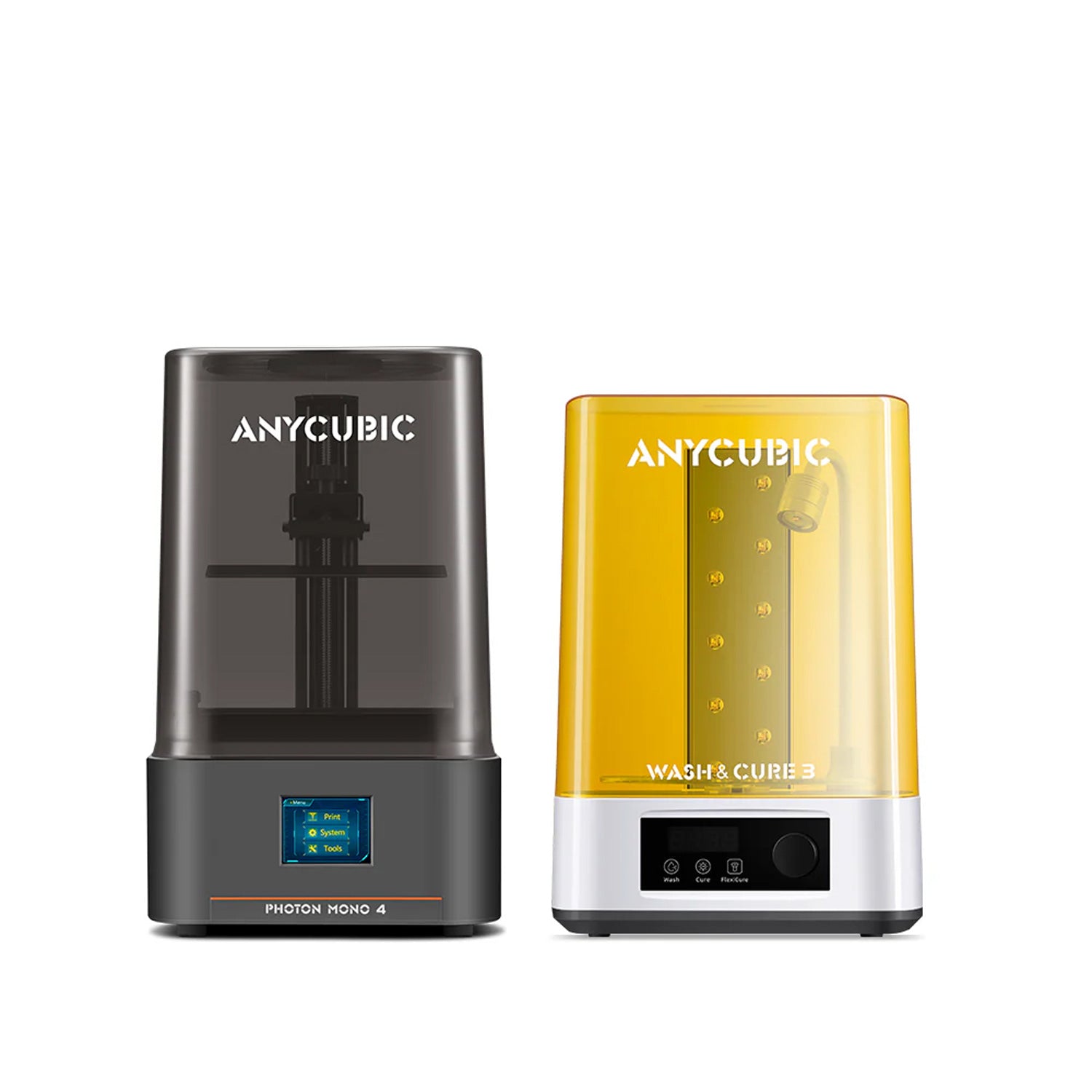

Include Wash&Cure Machine: Photon Mono 4
Buy it Now
Note:
The type and colors in the printer bundle are random, it may contain duplicate colors. Product images are for reference only.
ANYCUBIC-AU
Estimated Shipping Time
Photon Mono 4
Ships in 24 hours
View More
ANYCUBIC-AU
Payment Methods
PayPalVisaAmerican Express MastercardDiscoverDiners ClubJCBGoogle Pay Apple Pay AfterpayZip
ANYCUBIC-AU
Delivery Method
ANYCUBIC-AU ANYCUBIC-AU ANYCUBIC-AU
ANYCUBIC-AU
Free Express Shipping
ANYCUBIC-AU
14-Day No Reason Return
ANYCUBIC-AU
30-Day After-Sales Guarantee
ANYCUBIC-AU
1-Year Warranty For 3D Printers
Regular price $319.00
Sale price $319.00 Regular price $351.00
Features Specifications In the Box Compare Reviews FAQs
Regular price $319.00
Sale price $319.00 Regular price $351.00
Add to cart

Why Choose Photon Mono 4

  • Details Define Difference

  • Exquisite, on Each Level & Every Pixel

  • Dream Big, Think Big, Print Bigger

  • More Cohesive Platform 2.0

  • Pick Up Where You Left Off

  • Activated Carbon Air Purifier

ANYCUBIC-AU
ANYCUBIC-AU
ANYCUBIC-AU

10K Precision, Almost Detail-Perfect

Printing with 0.02mm Layer Height

105% precision increase compared to Mono 2

X/Y-axis pixel precision reaches 17*17 μm

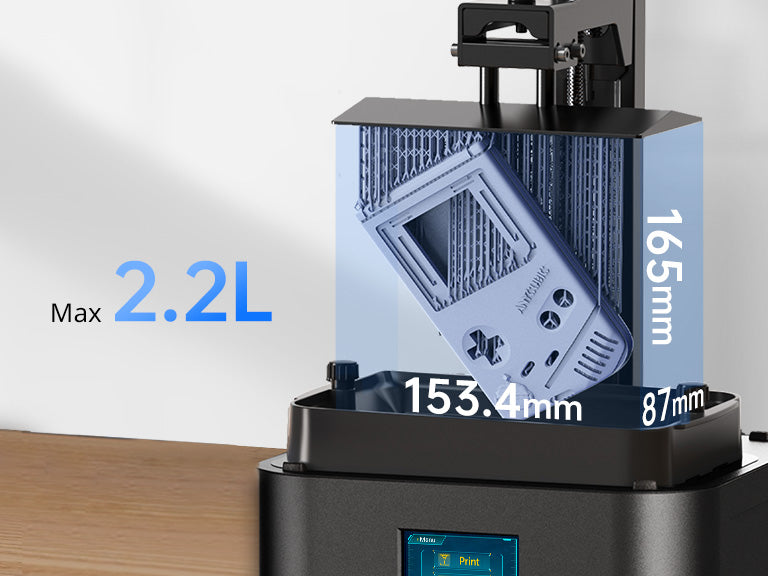

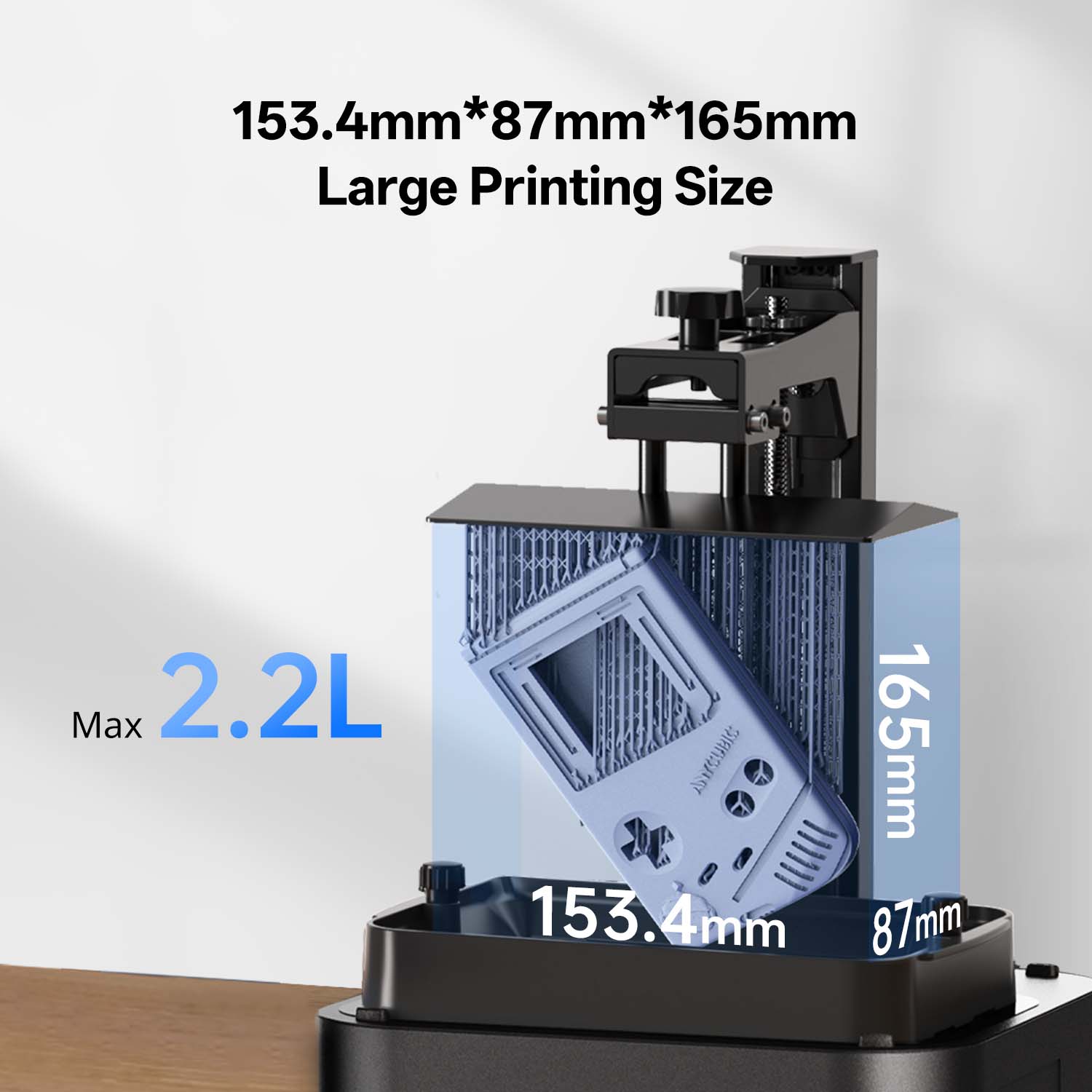

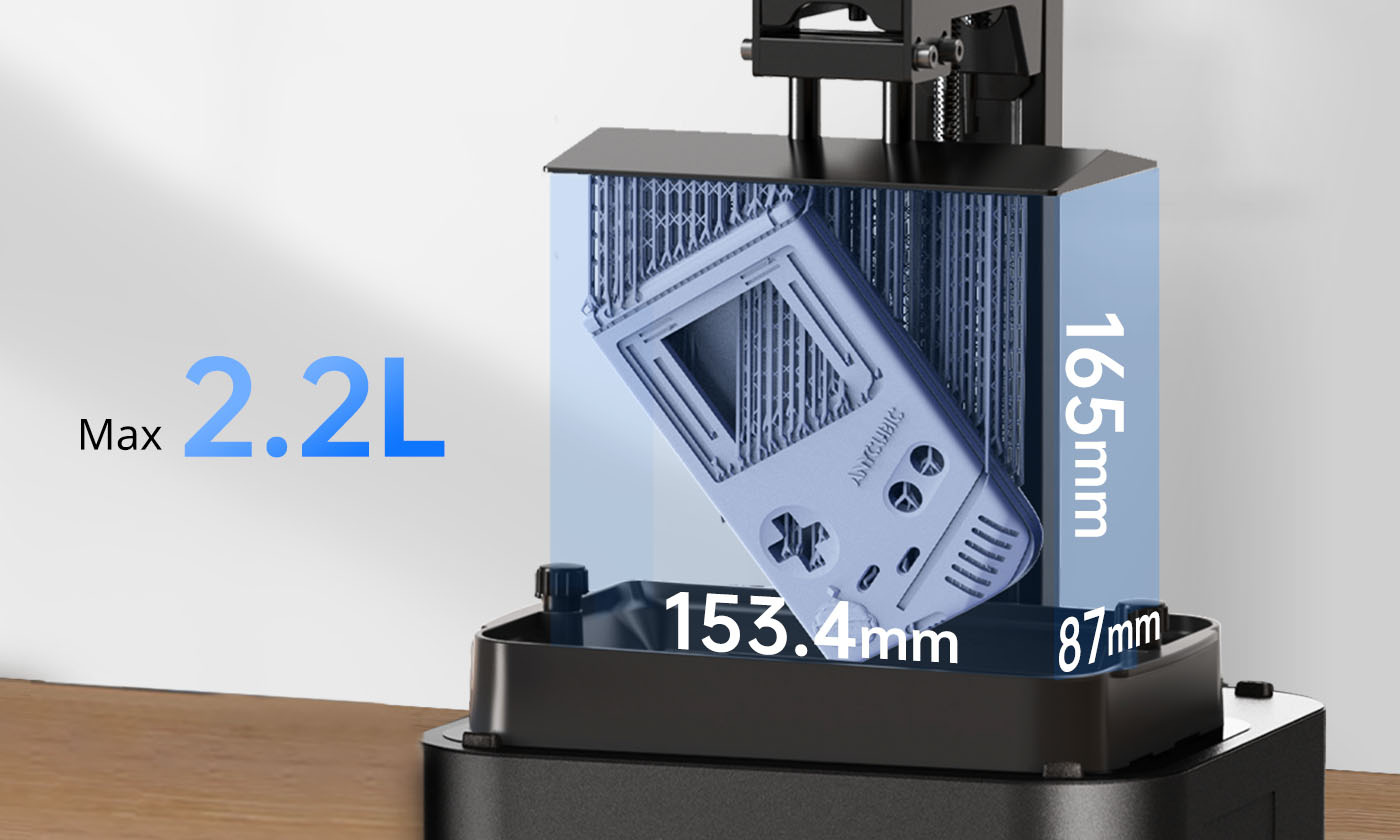

Dream Big, Think Big, Print Bigger

2.2L (153.4mm*87mm*165mm)
Suitable for printing medium-sized household items, accessories, and intricate models.

The Story is in the Details
ANYCUBIC-AUANYCUBIC-AU
Exquisite, on Each Level & Every Pixel
ANYCUBIC-AUANYCUBIC-AU

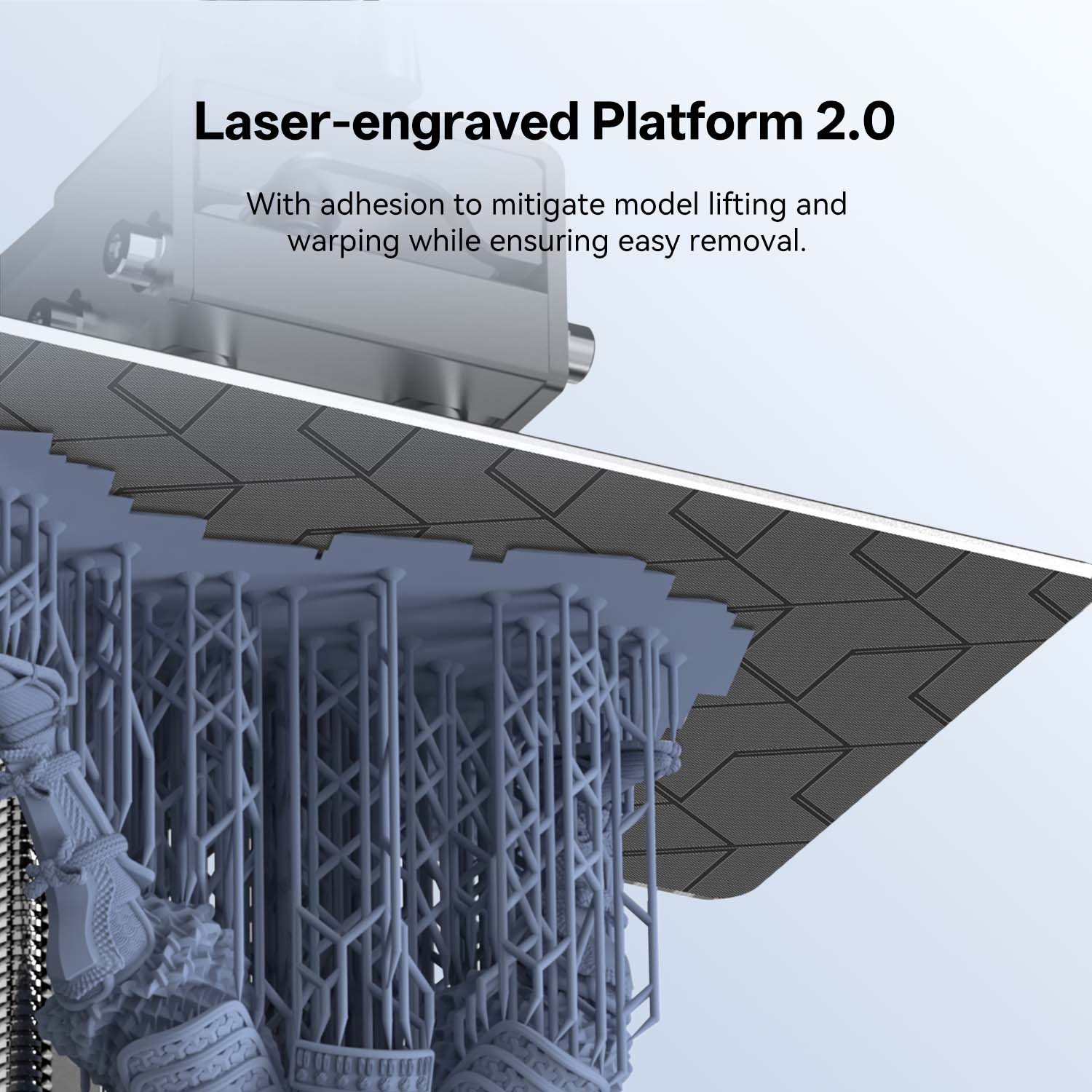

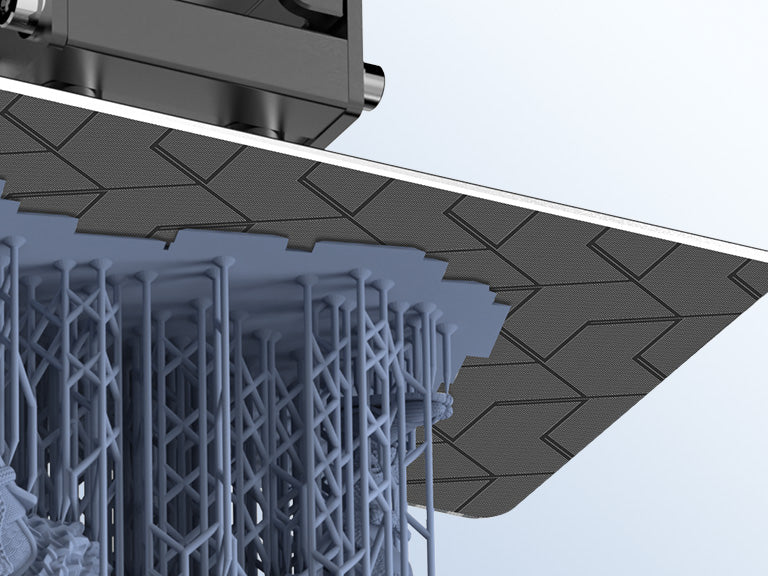

More Cohesive Platform 2.0
ANYCUBIC-AUANYCUBIC-AU
4-Point Leveling Efficiency
ANYCUBIC-AUANYCUBIC-AU

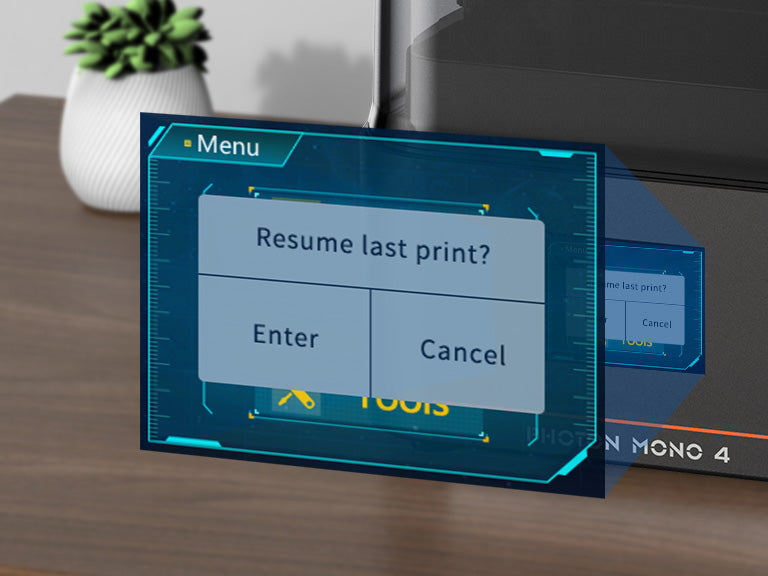

Pick Up Where You Left Off
ANYCUBIC-AUANYCUBIC-AU

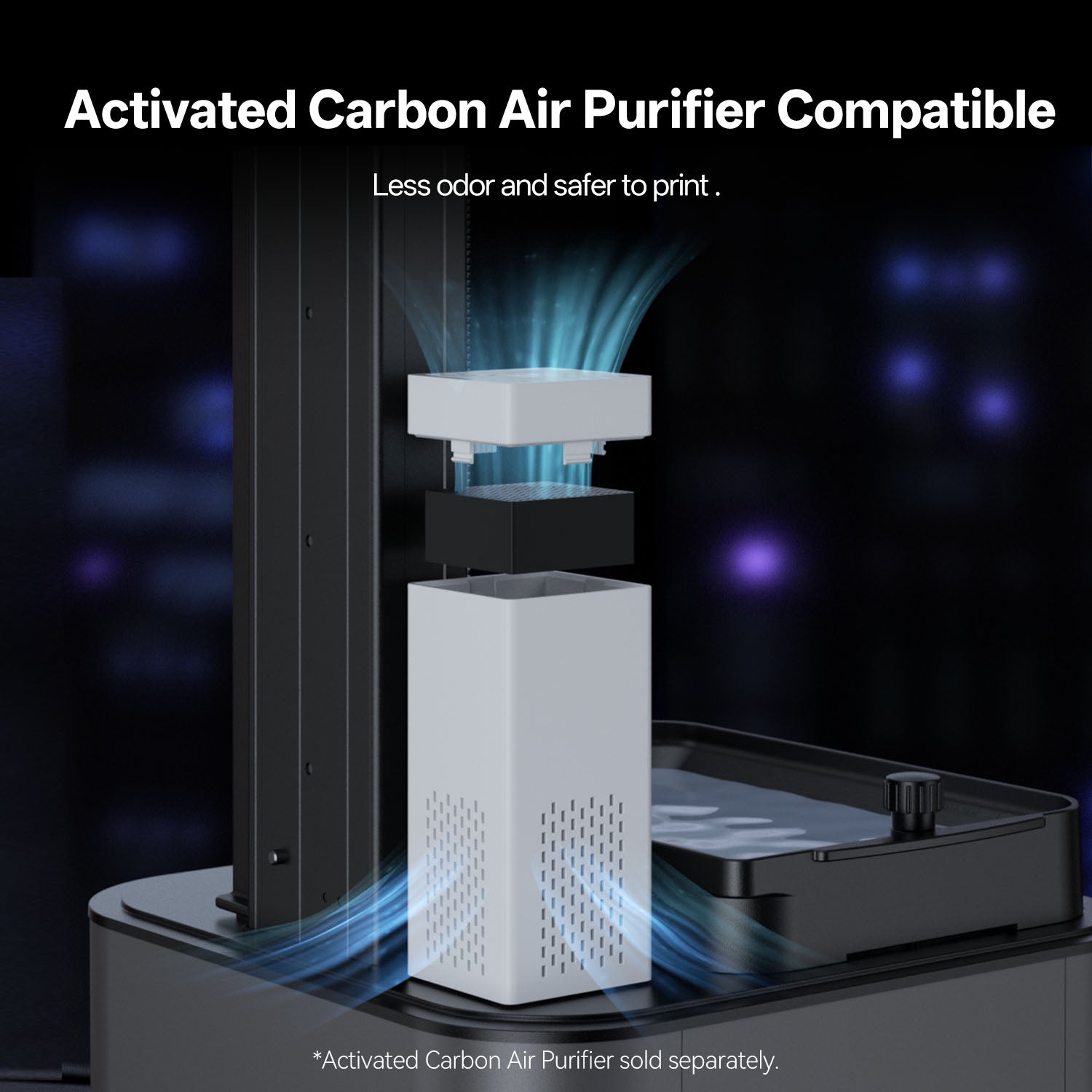

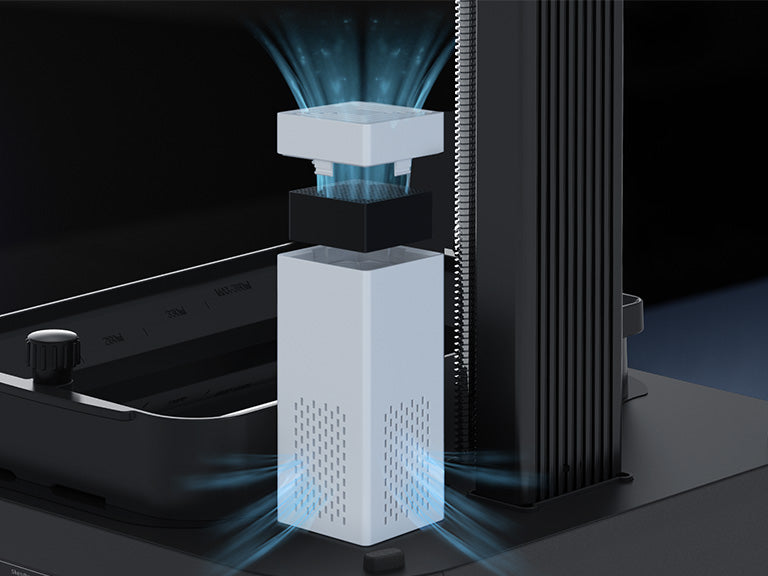

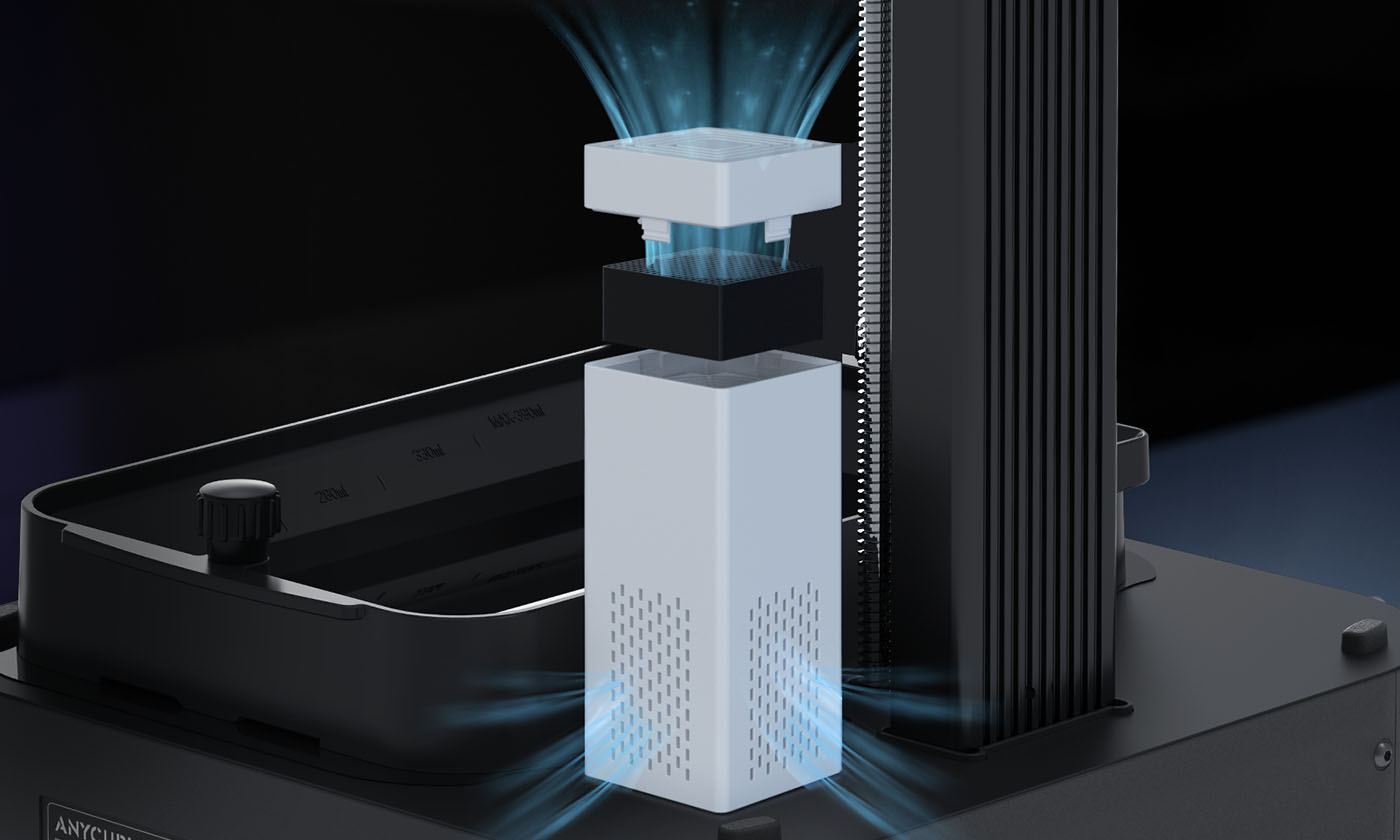

Activated Carbon Air Purifier Compatible.

The 18 mm high-density activated carbon filter, weighing 17 grams, is designed to efficiently capture and neutralize odor molecules produced during printing.

*Activated Carbon Air Purifier sold separately

All-new Advance Resins
ANYCUBIC-AUANYCUBIC-AU
High Speed Resin 2.0: Resilient Against Bending and Cracking
ANYCUBIC-AUANYCUBIC-AU
Texture Resin: Produces Excellent Details
ANYCUBIC-AUANYCUBIC-AU
Bio Resin: Eco-friendly
ANYCUBIC-AUANYCUBIC-AU
The Anycubic Ecosystem
ANYCUBIC-AUANYCUBIC-AU
The Latest Anycubic Photon WorkShop
ANYCUBIC-AUANYCUBIC-AU
Makeronline Creativity Community
ANYCUBIC-AUANYCUBIC-AU
Specifications
Core Printing Performance

Printing Volume

153.4*87*165mm (2.2L)

Printing Speed

Max Speed ≤50mm/hr; Standard Resin (0.1mm): ≤50mm/h; High-Speed Resin (0.1mm): ≤70mm/h

Layer Height Range

0.03-0.15mm

X/Y Axis Resolution

17 × 17μm

Light Source

Parallel matrix upgrade light source

Light Intensity

~3000μW /cm²

Material Compatibility

High-speed, water-washable, standard, ABS-like, and plant-based resins, etc
System & Mechanical Design

Build Platform

Laser-engraved build plate

Z-axis

Single linear rail with 30 μm accuracy

Release Film

FEP film

Resin Vat

≤0.39L

Machine Leveling

4-point manual leveling

Power Loss Resume

Not supported

Power Supply

54W

Protection Film

Replaceable scratch-resistant film

Resin Auto-fill Unit

Not supported

Dynamic Temperature Control Resin Vat

Not supported

Slicing Software

Photon Workshop

File Transfer

USB
User Experience & Features

Hinged Cover

-

Operating Screen

2.8" Touch-Control

Air Purifier

Optional accessory

LCD Screen

7-inch monochrome LCD, 10K resolution

Anycubic App

Not supported

Multilingual Support

EN / CN / DE / FR / IT / ES / RU / JP

Machine Weight

4kg

Package Weight

5.7kg

Product dimensions

230*235*391mm

Packaging dimensions

480*300*300mm

User Manuals

Unboxing Video

What's In Box
ANYCUBIC-AUANYCUBIC-AU
Photon Mono 4
ANYCUBIC-AUANYCUBIC-AU
Print Platform * 1
ANYCUBIC-AUANYCUBIC-AU
Resin Vat * 1
ANYCUBIC-AUANYCUBIC-AU
Manual * 1
ANYCUBIC-AUANYCUBIC-AU
Sreen Protector Kit
ANYCUBIC-AUANYCUBIC-AU
Leveling Paper
ANYCUBIC-AUANYCUBIC-AU
Protective Equipment
ANYCUBIC-AUANYCUBIC-AU
Filter *2
ANYCUBIC-AUANYCUBIC-AU
Scrapers * 2
ANYCUBIC-AUANYCUBIC-AU
Hex Key Set
ANYCUBIC-AUANYCUBIC-AU
USB Drive * 1
ANYCUBIC-AUANYCUBIC-AU
Power Cord

Photon M4 Series Tech Specs

Explore More Printers

FAQs


How to get more information about Photon Mono 4?

For more information on the Photon Mono 4, please visit the Anycubic Wiki.

Where should I go to download slicer software?

Please visit Firmware & Software to download the slicing software.

What hardware is required when using a printer to clean and cure printed parts?

To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.
